Overview
The rear suspension is conceptually similar to the front suspension, consisting of eg upper and lower control arms, together with the hydraulic strut, as shown in this Photo of rear suspension.
Rear Suspension
.png)

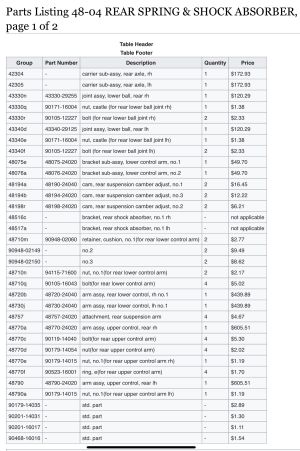

Parts Listing 48-04 REAR SPRING & SHOCK ABSORBER, page 1 of 2
Rear Spring & Shock Absorber
Rear Spring and Shock Absorber diagram

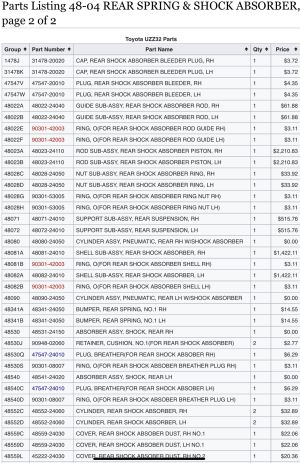

Parts Listing 48-04 REAR SPRING & SHOCK ABSORBER, page 2 of 2
