Digital dash

Jump to navigation Jump to search


The UZZ32 Soarer has a Digital Dash that displays Speed, Odometer and System Messages digitally.

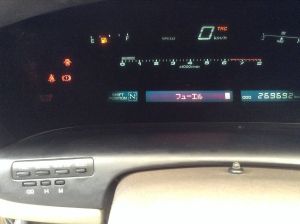

Digital dash (displaying ‘’Low Fuel’’ warning)

Japanese language

Many of the system messages are in Japanese and you may wish to retain a copy of the translated Warning Messages.

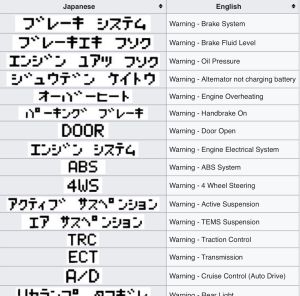

Soarer Dash Warning Messages

Common Dash Problems and fixes

  • Capacitors in the dash go bad, causing eg “Blinky Dash”.
  • The Odometer LCD leaks, gradually becoming unreadable. Replacing that LCD solves this and doesn’t not affect the Odometer reading.
  • Replacing the dash with a compatible one (ie a UZZ31 one will work, though UZZ32 specific messages will then not be available) is possible but will impact the odometer reading.

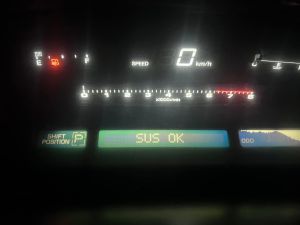

Leaking Odometer LCD
